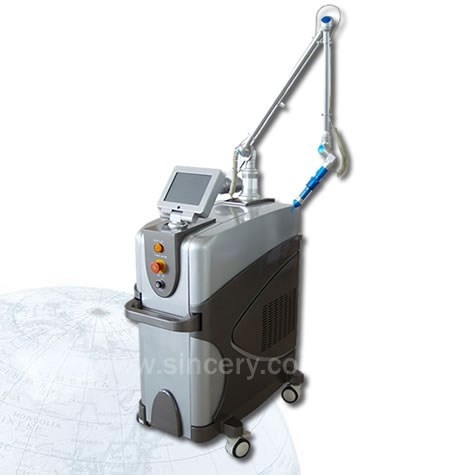

BS-YAG1 is an effective - reliable and versatile Q-switch Nd:Yag laser for dermatological and aesthetic indications - including tattoo removal - pigmented lesions - wrinkles - and dermal lesions - including melasma - tattoo - epiderma nevi - ota - scar - and some vascular lesions
This laser system is benefited by multiple unique designs - including the special Q-switch component and polarizer - optimized laser cavity mode selection - high efficiency 7 joints articulated light conducting arm - advanced cap-shaped laser distribution technology - which ensures a stable and uniformly distributed laser beam - to emit pure 1064nm or 532nm laser beam - so as to achieve the best treatment result. Extra features as the adjustable laser handpiece to control the spot size - and at the same time keeping output energy density unchanged automatically.
Besides the standard Q-switch output mode - the BS-YAG1 system supports wide-spectra mode (pulse width extends to 300us). Under this mode - more applications can be done including laser toning and soft peel (for chloasma and PIH) - and skin rejuvenation - acne - pore shrinking etc.
Features
- Multiple treatment options: 6nm Q-switch infrared/green Nd:Yag laser or 300um soft peeling laser
- High peak power and very narrow pulse width
- Adjustable spot size and system automatically calibrates the energy fluence upon spot size change
- High efficiency laser delivery system - with less than 15% loss before deliver to tissue
- Multiple optional handpieces for different applications.
- Metal case and durable design - and work stably in long time operation
Specification
Laser Type EO Q-switch Nd:YAG Laser
Wavelength 1064 nm / 532nm
Single Pulse Energy To Tissue 1064nm: 1.6 J / 800mJ
532nm: 400mJ
Pulse Width Minimal 6 ns (Q-switch mode)
300 us ( wide-spectra mode)
Repeat Frequency 1 – 10Hz
Spot Size Diameter 2 – 7 mm adjustable on handpiece
Diameter 10mm with parallel handpiece
Red Diode Laser 650nm Red Laser
Laser Delivery System 7 joints articulated arm
Cooling Mechanism Close loop self-contained Water-Air cooling
Built-in programs Indication menu with preset treatment protocols
Weight 125Kg
Working Environment 10 – 28℃ 30~80%RH - 500~1060hPa
Power Specification AC220V/50Hz - 16A
Dimension 700 x 420 x 505 mm
