The delivery time for machine is 1.5 month after the receipt of the first advance payment

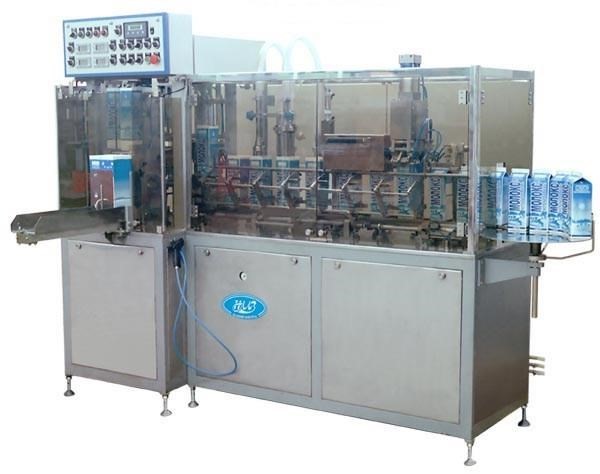

U-1M – semiautomatic carton form-fill-seal machine for liquid and paste-like foodstuffs
into laminated
included foiled
cartons of PURE-PAK and TETRA-REX style formed from blanks
with volumes: 0.25 l; 0.5 l
and 1.0 l
The typical products are: milk
kefir
acidophilic milk
bifidus drinks
sour cream
yogurt
cream
mayonnaise
sauce
non-carbonated drinks
juice
etc
Capacity of U-1M is 700 cartons per hour
Service staff: two operators
I’d like to pay you attention to the fact
that U-1M is an easily operated machine. The staff does not need to be a qualified engineer
The following operations are manual
Loading / removal of blanks onto/from mandrel
Setting of package into UV- treatment device
Carton loading into the carrousel ring
Removal of filled and sealed carton package
You can see the process chart of -1M
attached below
Technical characteristics
Dimensions
mm: 1900x1100x1600
Weight: 310
0 kg
Power: 220V
50Hz
2
6kW
Water consumption: 0.1 m3/h
Compressed air (pressure/consumption): 6-8 kg/sm2 / 125.0 l/min
As you can see
the power consumption of that machine is very low. That parameter marks out our machine from its analogues
