PS10,000A GRC SPRAY STATION
Power-Sprays PS10000 series GRC/GFRC pump spray stations have been introduced
to supplement the already popular PS9000 units. Based on a similar design to the
PS9000’s the PS10000’s feature larger rotor/stator pump assemblies for longer life
and a more powerful drive and gearbox.
The maximum output at full speed with a new rotor/stator is over 100 kg/minute.
Thus, there is plenty of speed range to compensate as components wear.

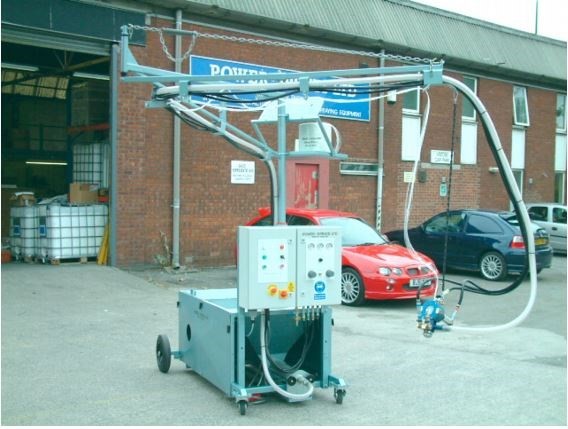

PS10000’s are available in two formats: ‘A’ with a machine mounted articulated
spray support boom (as illustrated overleaf) and a ‘B’ version without. An optional
free-standing rovings boom is available for the ‘B’ version.
Other excellent features include:
• Low level vibrated material hopper designed for the either manual or
mechanical loading. A removable sieve is fitted to filter the material to
prevent lumps entering the pump and blocking the spray head.
• Incorporated large diameter pneumatic wheels with articulated castors for
complete mobility.
• A sensor in control system starts/stops the pump when the “Spray Air” is
turned on/off at the spray head.
• All necessary pneumatic distribution and control systems are built in. Spare
pneumatic outlets are provided for air supplies to ancillary tools (e.g. Mist
Coat Gun, Vibrated Trowel, etc).
• Mounted on the pump the articulated spray support boom takes the weight off
the spray man. The boom includes two sets of ceramic roving guides and a
large 4-box capacity-roving tray.
• Transparent reinforced hose for added safety and assurance of good cleaning.
• Power-Sprays Concentric supplied as standard (other spray heads also
available).
